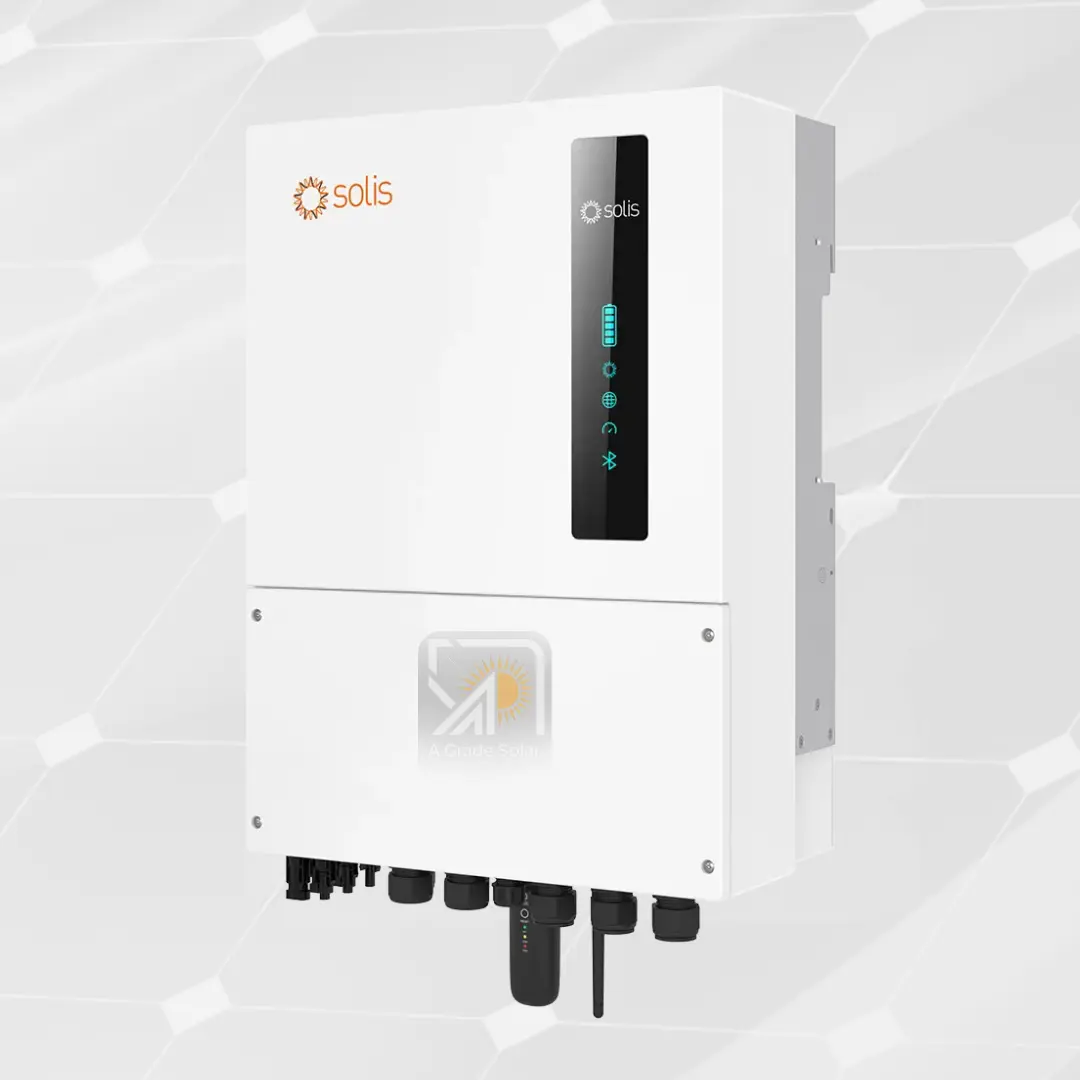

S6-EH1P(6-8)K-L-PRO series energy storage inverter is designed for residential PV energy storage system.
Support multiple parallel machines to form a single-phase or three-phase system with maximum power of 48kW. With UPS level switching time, 10s surge power overload and critical loads. Support 135A Charge and discharge capacity, provide higher energy throughput density. A variety of intelligent protection functions make home power supply safe and secure.
Specifications
- Brand: Solis
- Model: 8kW Pro Hybrid Inverter
- Inverter Type: Hybrid (Solar + Battery + Grid)
- Rated Output Power: 8000W
- Max PV Input Power: 10400W
- Max PV Input Voltage: 600V
- MPPT Inputs: 2 Independent MPPTs
- Battery Voltage: 48V
- Battery Compatibility: Lithium-Ion / Lead Acid
- Max Charging/Discharging Current: 125A
- AC Output Voltage: 230V (Single Phase)
- Frequency: 50Hz / 60Hz
- Max Efficiency: 97.8%
- Communication Interfaces: RS485 / CAN / WiFi
- Monitoring System: SolisCloud App / Web Portal
- Cooling System: Intelligent Fan Cooling
- Protection Level: IP66 (Outdoor & Indoor Safe)
- Operating Temperature: -25°C to +60°C
- Dimensions: Approx. 550 × 450 × 220 mm
- Weight: ~26 kg
- Warranty: 5 Years Standard (Extendable)
