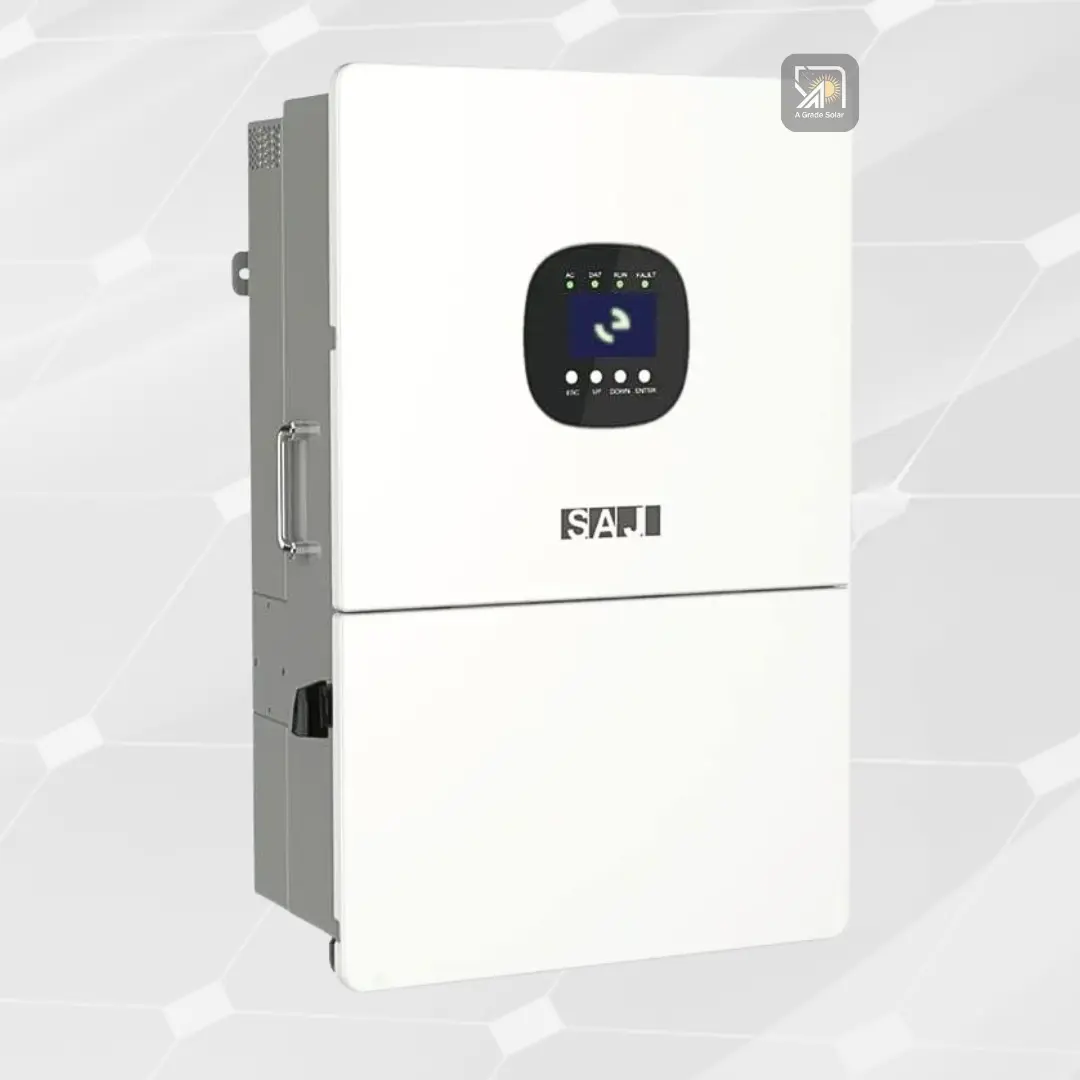

SAJ 20KW Three Phase Hybrid Inverter | SAJ H2 series

SAJ LV three phase 20KW Hybrid Inverteris a cutting-edge, three-phase solar inverter with a digital screen and intuitive controls for efficient management of solar power systems. Ideal for professional solar installations.

Brand: SAJ
Availability: In Stock
Rs. 750,000
SAJ 20 KW Hybrid Inverter | SAJ H2 series | A Grade Solar

SAJ H2-20K-LT2 Hybrid Solar Inverter – Specifications

General Information

  • Brand: SAJ

  • Model: H2-20K-LT2

  • Type: Hybrid Inverter / Charger

  • Output Type: Hybrid (On-Grid & Off-Grid)

Performance

  • Rated Output Power: 20,000 W (20kW)

  • Max PV Input Power: 32,000 W (32kW)

  • Max Efficiency: 98.5%

  • Euro Efficiency: 98.0%

  • Peak Off-Grid Power: 40,000 W (10 seconds)

  • Max AC Output Backup: 20,000 VA

Input Specifications

  • Battery Input Voltage: 40 – 60 V DC

  • PV Input Voltage Range: 160 – 950 V DC

  • MPPT Voltage Range: 160 – 950 V

Output Specifications

  • Output Voltage: 220/380 V, 230/400 V AC

  • Output Current:

    • Rated: 30.3 A

    • Maximum: 33.4 A

  • Output Frequency: 50 / 60 Hz

Battery Specifications

  • Max Battery Charging Current: 350 A

System Features

  • Max Parallel Units: 10 Inverters

  • Total Harmonic Distortion (THDi): < />

Physical Details

  • Dimensions: 740 × 470 × 270 mm

  • Weight: 53 kg
