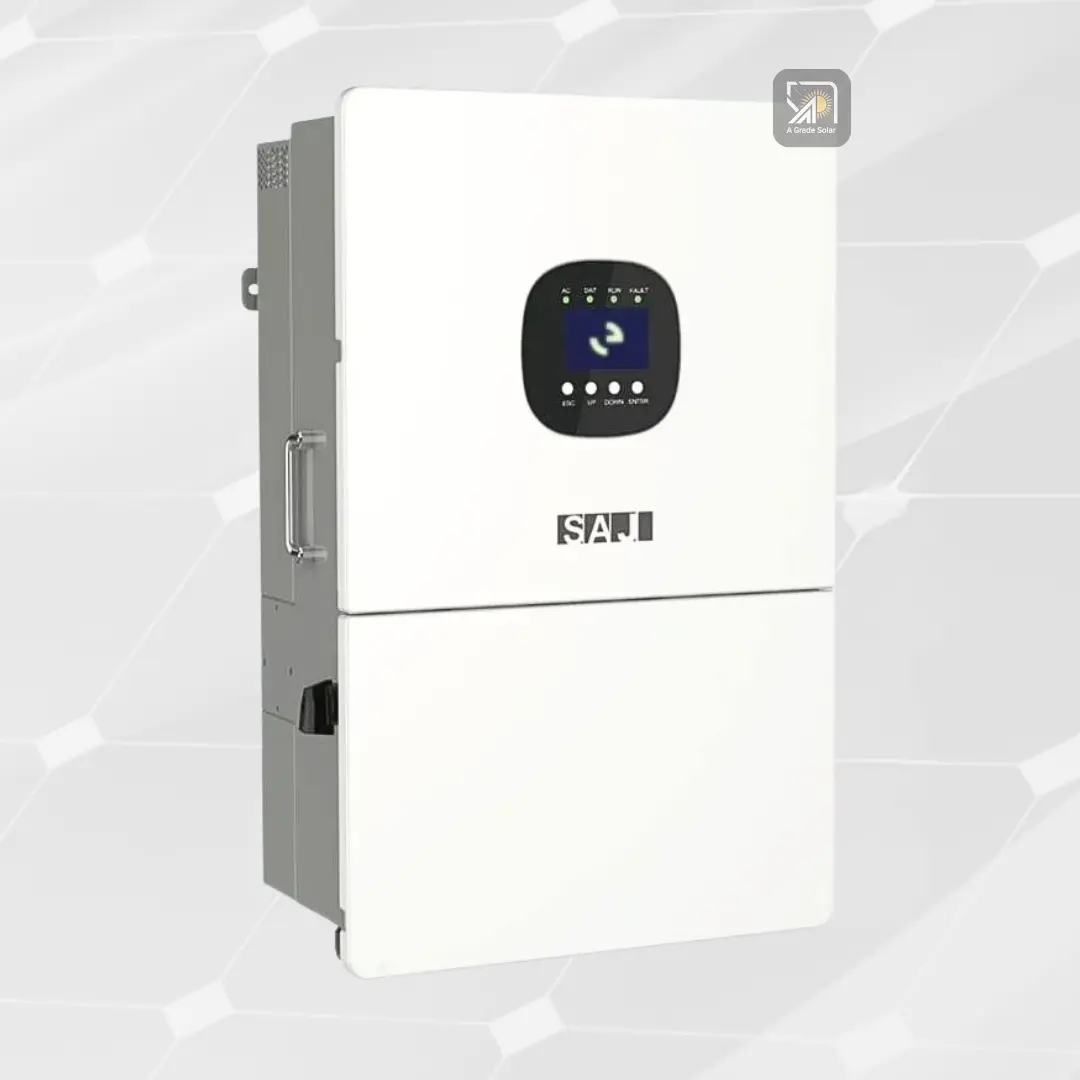

SAJ 12KW Three Phase Hybrid Inverter | SAJ H2 series

The H2-12K-LT2 12kW hybrid inverter meets energy-intensive home and business demands. It provides whole-home backup via a 75A bypass during outages. Scale the system with up to 10 parallel units.
Brand: SAJ
Availability: In Stock
Rs. 525,000
SAJ 12 KW Hybrid Inverter | SAJ H2 series | A Grade Solar

SAJ H2-12K-LT2 Hybrid Solar Inverter – Specifications

General Information

  • Brand: SAJ

  • Model: H2-12K-LT2

  • Type: Hybrid Inverter / Charger

  • Output Type: Hybrid (On-Grid & Off-Grid)

Performance

  • Rated Output Power: 12,000 W (12kW)

  • Max PV Input Power: 19,200 W (19.2kW)

  • Max Efficiency: 98.0%

  • Euro Efficiency: 97.5%

  • MPPT Efficiency: > 99.9%

  • Peak Off-Grid Power: 24,000 W (10 seconds)

  • Max AC Output Backup: 12,000 VA

Input Specifications

  • Battery Input Voltage: 40 – 60 V DC

  • PV Input Voltage Range: 160 – 950 V DC

  • MPPT Voltage Range: 160 – 950 V

Output Specifications

  • Output Voltage: 220/380 V, 230/400 V AC

  • Output Current:

    • Rated: 18.2 A

    • Maximum: 20.1 A

  • Output Frequency: 50 / 60 Hz

Battery Specifications

  • Max Battery Charging Current: 240 A

System Features

  • Max Parallel Units: 10 Inverters

  • Cooling Method: Smart Cooling

Physical Details

  • Dimensions (W × H × D): 740 × 470 × 270 mm

  • Weight: 53 kg
