Technical Specifications
Brand & Model: PYTES V10 LiFePO₄
Nominal Capacity: 230Ah (11.78 kWh)
Usable Capacity: 200Ah (10.24 kWh)
Voltage Range: 47.5 V – 56.8 V
Charge/Discharge Current: 100A
Round-Trip Efficiency: ≥ 95%
Cycle Life: ≥ 8,000 cycles @ 90% DoD
Calendar Life: ≥ 10 years
Weight: ~98.6 kg
Dimensions: 671 × 260 × 520 mm
Protection Rating: IP66
Communication Ports: RS485, CAN, Dry Contact, Wi-Fi
Certifications: UL 9540/9540A, UL 1973, CEC, IEC 62619, UN38.3
Wi-Fi / Bluetooth: Supported

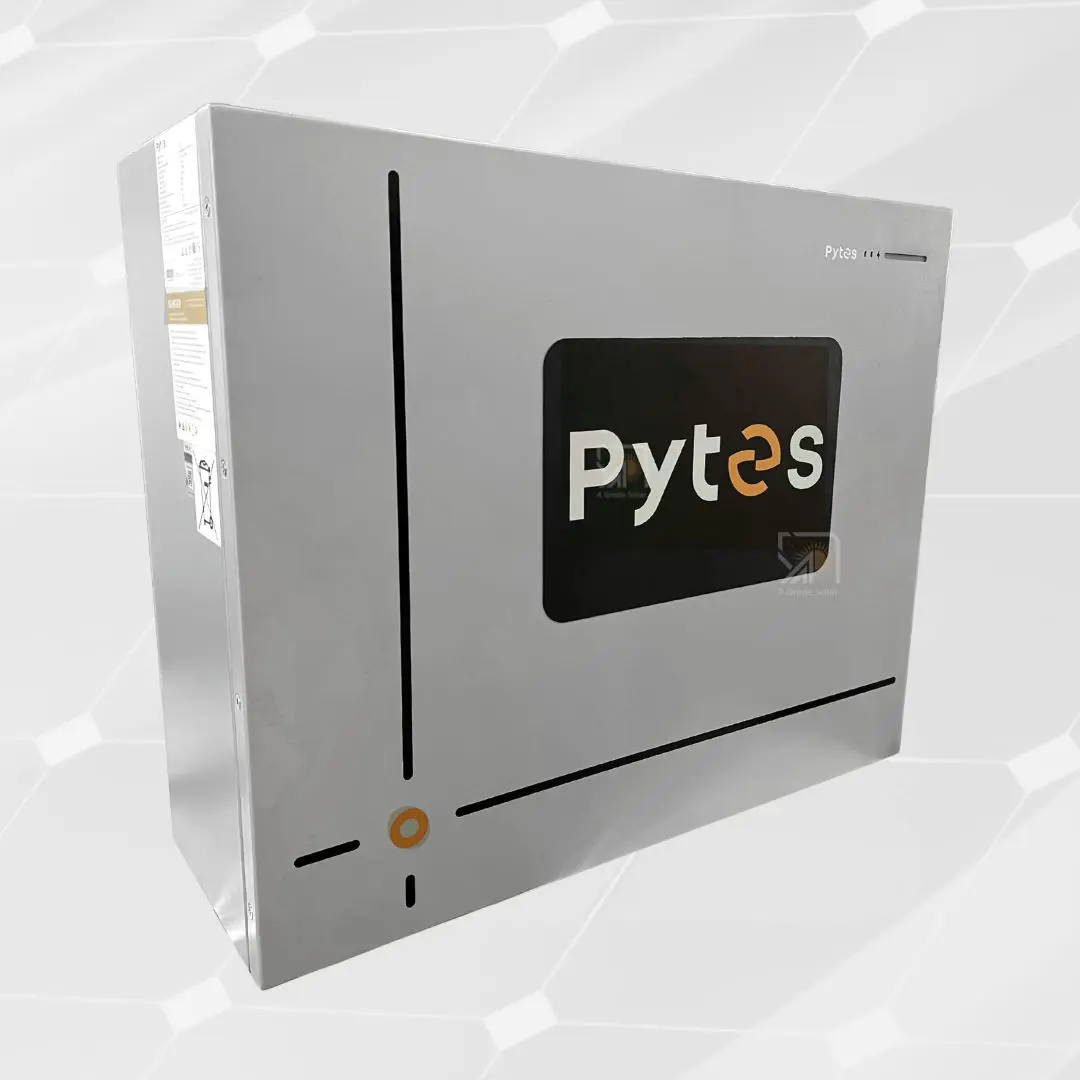

PYTES 10kWh Battery Bank
