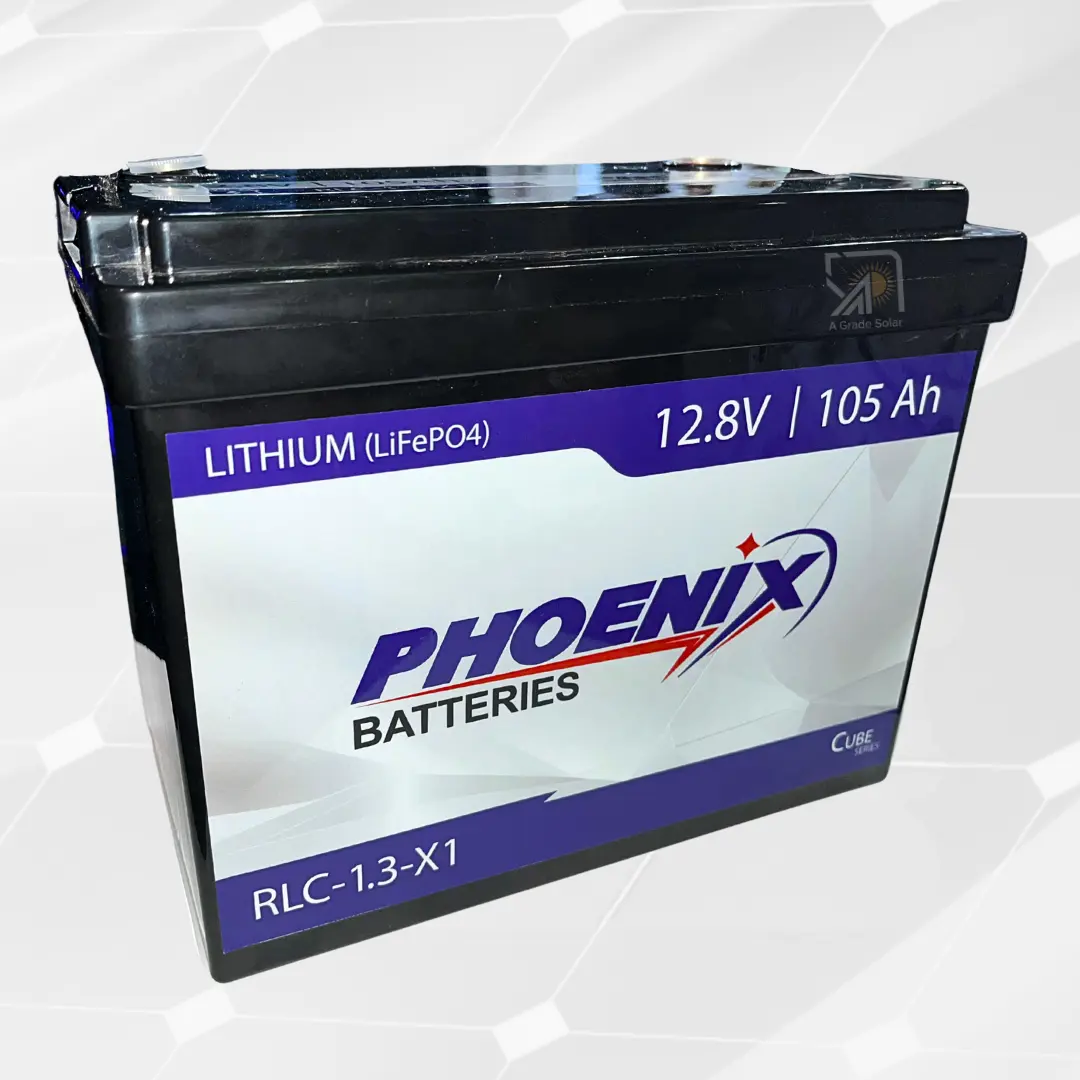

Phoenix Cube Series Lithium Ion battery – RLC-1.3-X1

Item	Specification
Model	RLC-1.3-X1
Battery Cell Chemistry	Lithium Iron Phosphate (LiFePO₄)
Cell String	1P4S
Nominal Voltage	12.8 V
Battery Capacity	105 Ah (25°C, 0.2C)
Nominal Energy	1344 Wh
Operating Voltage Range	10.4 V – 14.6 V
Charging Limited Voltage	14.6 V
Charge Mode	CC/CV (0.5C to 14.6 V, then 14.6 V until charge current < />
Discharge Cut-off Voltage	10.4 V
Recommended Charge/Discharge Current	50 A
Max. Continuous Charge/Discharge Current	75 A
Peak Charge/Discharge Current	80 A @ 60 s
Case Material	ABS
Dimensions (L×W×H)	260 × 167 × 210 mm (±3 mm)
Weight	12 kg ± 1 kg
Terminal Type	M8
