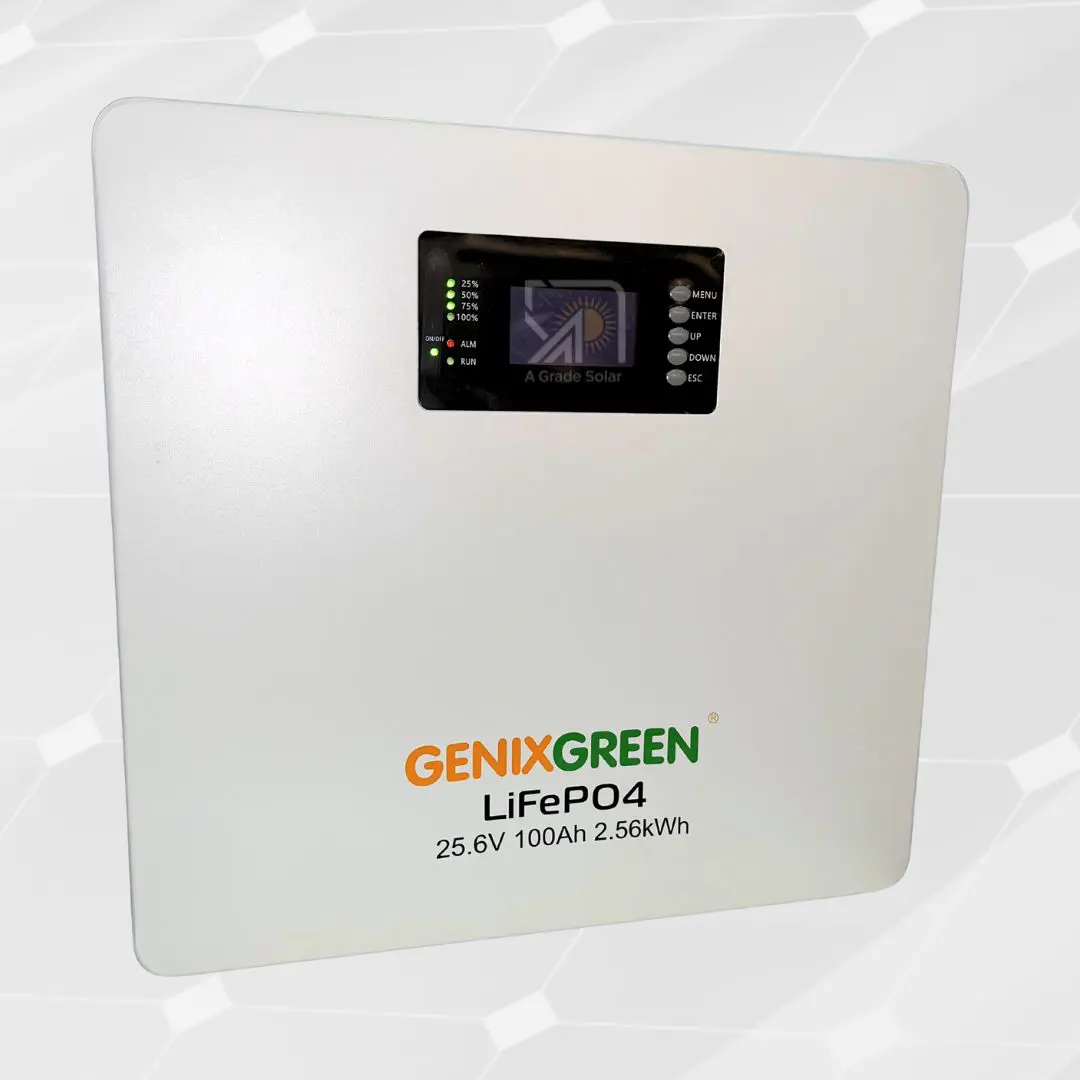

GenixGreen ES-BOX33S – 2.56 kWh Home Energy Storage Battery

Model: ES-BOX33S
Brand: GenixGreen
Energy Capacity: 2.56 kWh (25.6 V × 100 Ah)
Installation Options: Wall-mounted or Floor-standing
Ideal For: Compact solar systems, residential applications in Pakistan

The GenixGreen ES-BOX33S is a compact 2.56kWh LiFePO₄ energy storage battery (25.6 V, 100 Ah) designed for homes and small installations in Pakistan. Featuring a 4,000-cycle lifespan, 100 A max current, and support for 2 units in series or parallel, it ensures reliable backup. The built-in BMS offers real-time monitoring, remote O&M, and OTA firmware upgrades. With versatile wall or floor mounting and strong safety certifications, it's perfect for smart, efficient solar energy systems.

Nominal Energy: 2.56kWh

Nominal Voltage: 25.6V

Nominal Capacity: 100Ah

Cell Type: LFP

Standard Charge Voltage: 28.8V

Max. Discharge Current: 100A

Discharge Cut-Off Voltage: 20V

Parallel Function: Support In 2 Series and 2 Parallels

Cycle Life *: ≥4000 Cycles (25°C±2°C, 0.2C/0.2C, 80%DOD)

Dimension: 420*400*158mm

Net Weight: 28Kg

Wi-Fl Function: Optional

Installation Method: Wall Mounted/Floor Standing

Warranty: 3 Years(under warranty terms)

Certification: Pack: CEI 0-21/CE/IEC 62619/UL1973 by Intertek/MSDS/UN38.3 Cell: UL 1642/IEC 62619/CE/EMC/ROHS/MSDS/UN38.3

Waterproof grade: IP20
