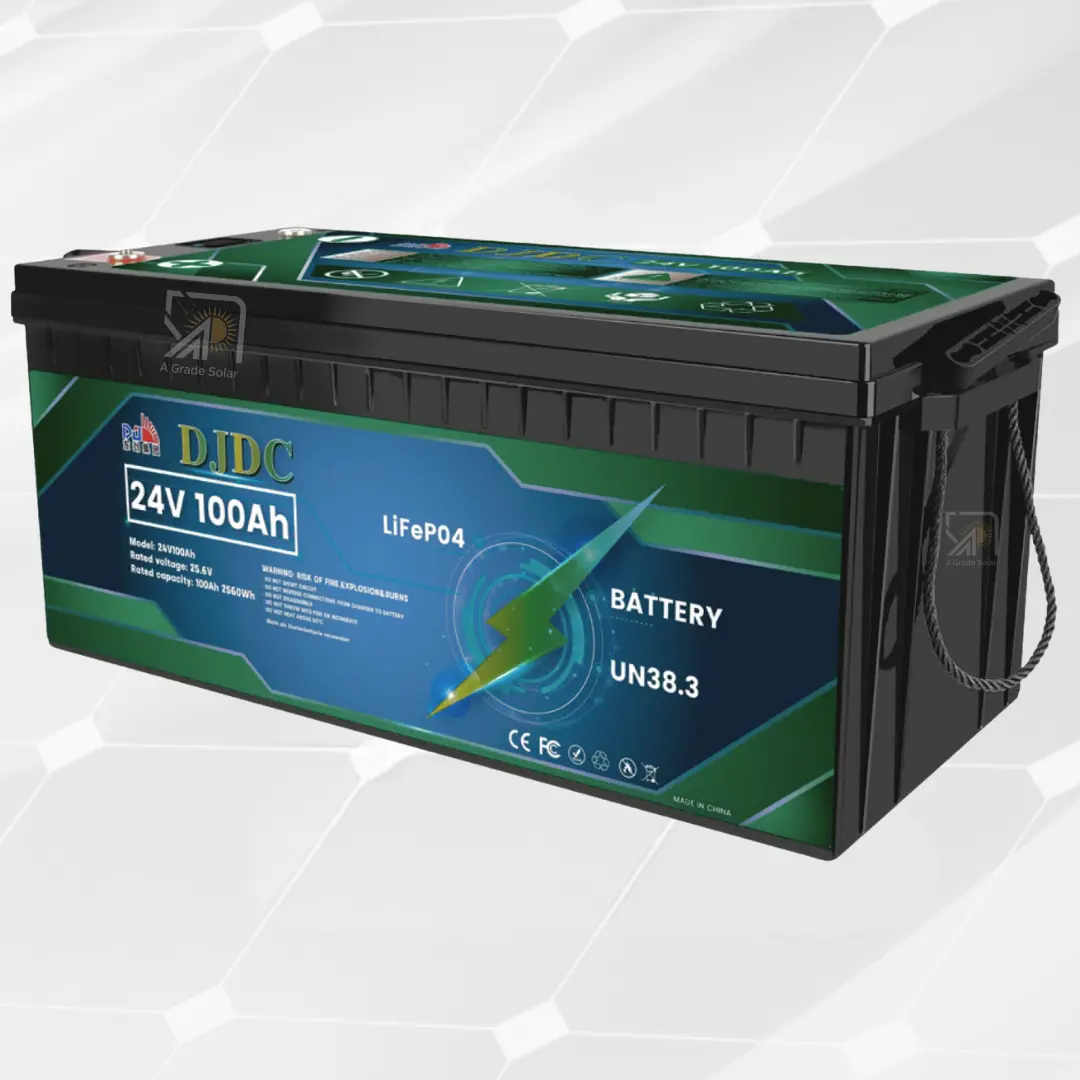

DJDC 24V 100Ah LiFePO4 Deep Cycle Battery

Reliable Power for Your Off-Grid Needs

Upgrade your energy system with the DJDC 24V 100Ah LiFePO4 Battery, a compact and lightweight powerhouse designed for trolling motors, solar systems, RVs, kayaks, and more. Built with Grade-A prismatic cells and a 100A Smart BMS, this battery delivers long-lasting, safe, and efficient energy for all your adventures.

Key Features:

• High Capacity & Energy: 100Ah with 2560Wh energy output
• Grade-A LiFePO4 Cells: Safe, stable, and long-lasting (4000–15,000 cycles)
• Smart 100A BMS: Full protection from overcharge, discharge, short circuit & temperature extremes
• High Power Output: 100A continuous
• Fast Charging: Supports up to 50A max charge current
• Durable & Weather-Resistant: IP65-rated ABS+PC shell for outdoor use
• Compact & Strong: 20.55" x 9.45" x 8.58", 47.08 lbs – robust yet manageable
• Wide Temperature Range: Operates from -20°C to 60°C


Model: DJDC 24V100AH

Nominal Voltage: 25.6V

Rated Capacity: 100Ah

Battery Energy: 2560Wh

Recommend Charge Current: 20A

Max Charge Current: 50A

Max Continuous Discharge Current: 100A

Charge Temperature Range: 0-45°C

Discharge Temperature Range: -20-60°C

Recommend Charge Voltage: 14.4V±0.2V

Max Charge Voltage: 29.2V

Discharge Cut-Off Voltage: 21.6V

Cell Type: LiFePO4 Prismatic A grade

Certification: CE / FCC / ROHS / UN38.3 / MSDS

Internal Resistance (M Ω): ≤18mΩ

Protection: BMS

Communication Interference: Smart Display and Bluetooth

Cycle Life: 6000 Cycles @ 80%

Terminal: M8, 9 / 16L, 5 / 16D(inch)

Protection Level: IP66

Battery Size (LxWxH) mm: 522x240x218

Battery Weight (Kg): 20.5
